A Series of runs in one dimension

I have done a sequence of runs varying beta (the power of temperature dependence) for the one dimensional problem. These runs are set with the following parameters in order to achieve a cooling length of approximately 1 cm: 1E17 particles per cubic cm
Flow temperature is 720K
Mach 15

This gives us T_0 (shock temperature) of 5.06250E4 K. To achieve the desired cooling length at this temperature we use alpha = 8.27393E-23 ergs/s per cubic cm. Beta varies between the runs.

Beta = -1.0
http://www.pas.rochester.edu/~rmarkwic/movie_-1_0.gif

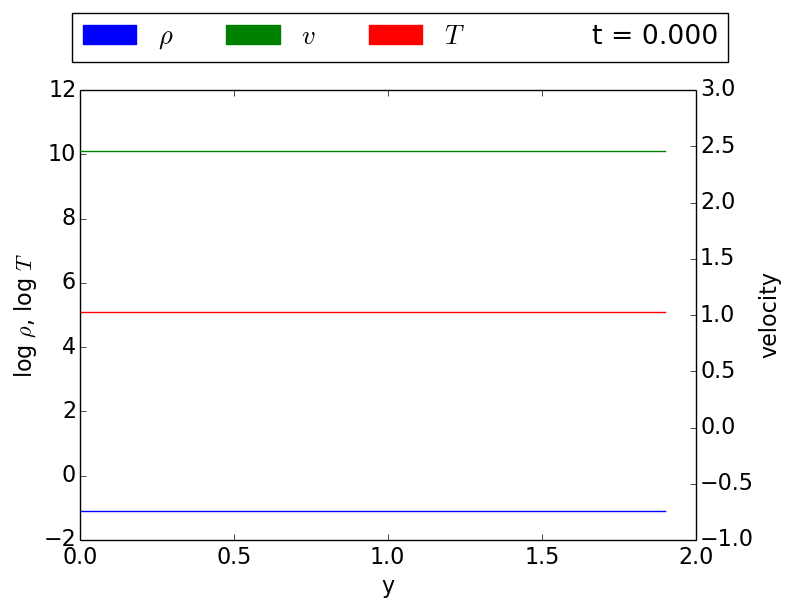

Beta = -0.5
http://www.pas.rochester.edu/~rmarkwic/movie_-0_5.gif
Beta = 0.0
http://www.pas.rochester.edu/~rmarkwic/movie_0_0.gif
Beta = 0.5
http://www.pas.rochester.edu/~rmarkwic/movie_0_5.gif
Beta = 1.0
http://www.pas.rochester.edu/~rmarkwic/movie_1_0.gif
Beta = 1.5
http://www.pas.rochester.edu/~rmarkwic/movie_1_5.gif

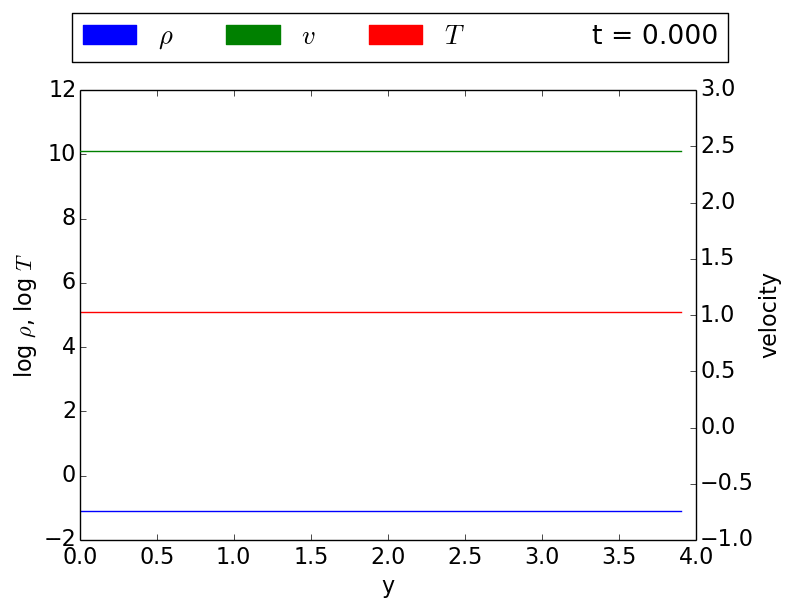

Beta = 2.0
http://www.pas.rochester.edu/~rmarkwic/movie_2_0.gif
Beta = 2.5
http://www.pas.rochester.edu/~rmarkwic/movie_2_5.gif
Beta = 3.0
http://www.pas.rochester.edu/~rmarkwic/movie_3_0.gif
