OutflowWind: Tests with Wind

Updated the problem module with a flag lWind to turn on/off stellar wind. The stellar wind is applied after t_wind>0 to allow the planet with asymmetric temperature profile to relax to a stable state before the wind kicks in. Also the wind is applied along -y direction for 2.5D and -x direction for…

Stellar Wind Speed In Stone&Proga\rho_{*}=10^{-4}\rho_{0} e_{*}=2.5X10^{-3}e_{0} and v_{*}=\sqrt{5}c_{s,*}. Correspondingly in AstroBEAR, T_{*}=25T_{0}, C_{s,*}=\sqrt{\gamma P/\rho}. For \gamma=5 case, M_{0}=0.6M_{Jupiter} and T_{0}=25560, so the calculated stellar wind speed v_{*}\approx 1.638\times 10^{3} km/s. The speed is way too high for the code with the current parameters…

2.5D restuls

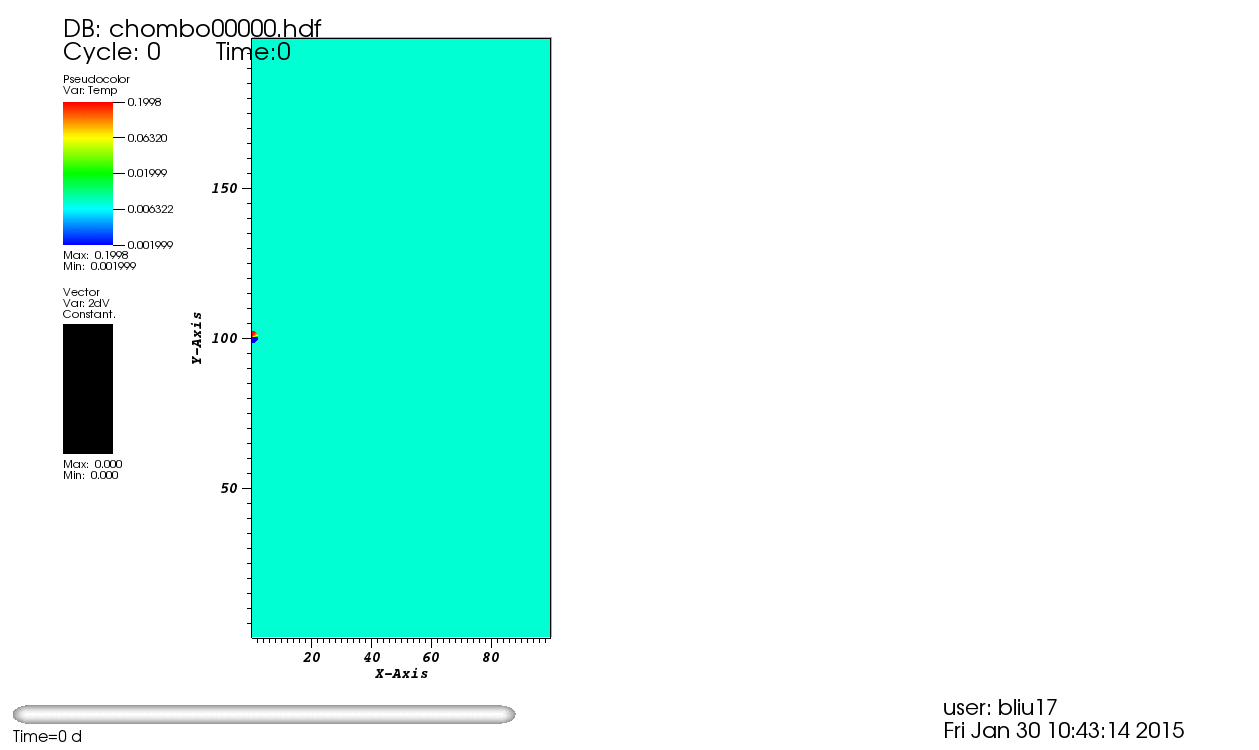

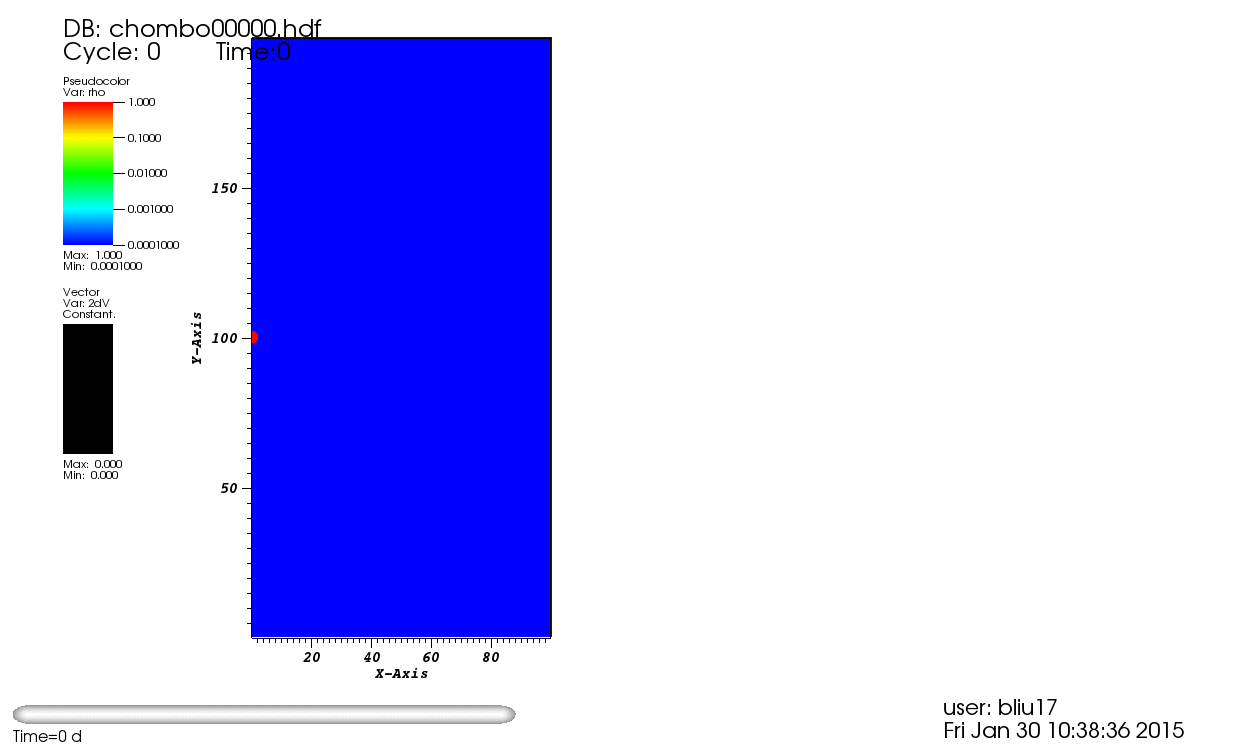

v_{*}=1m/s		density;temperature

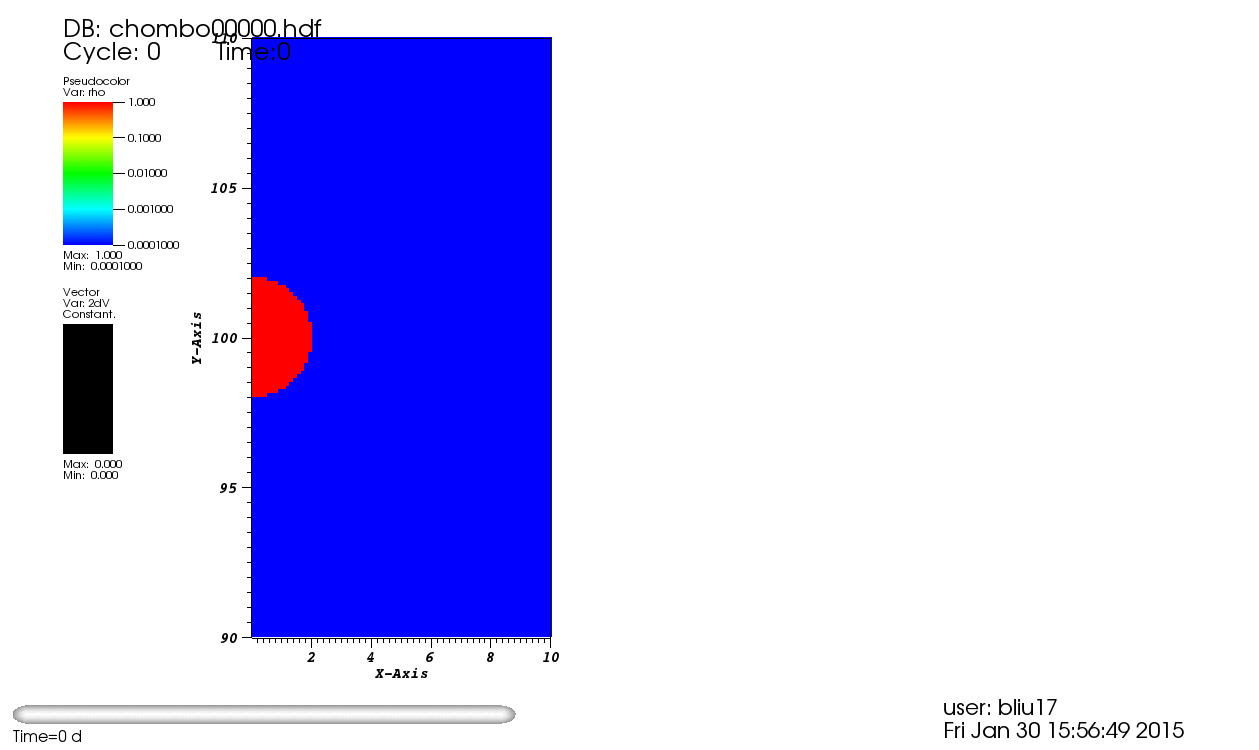

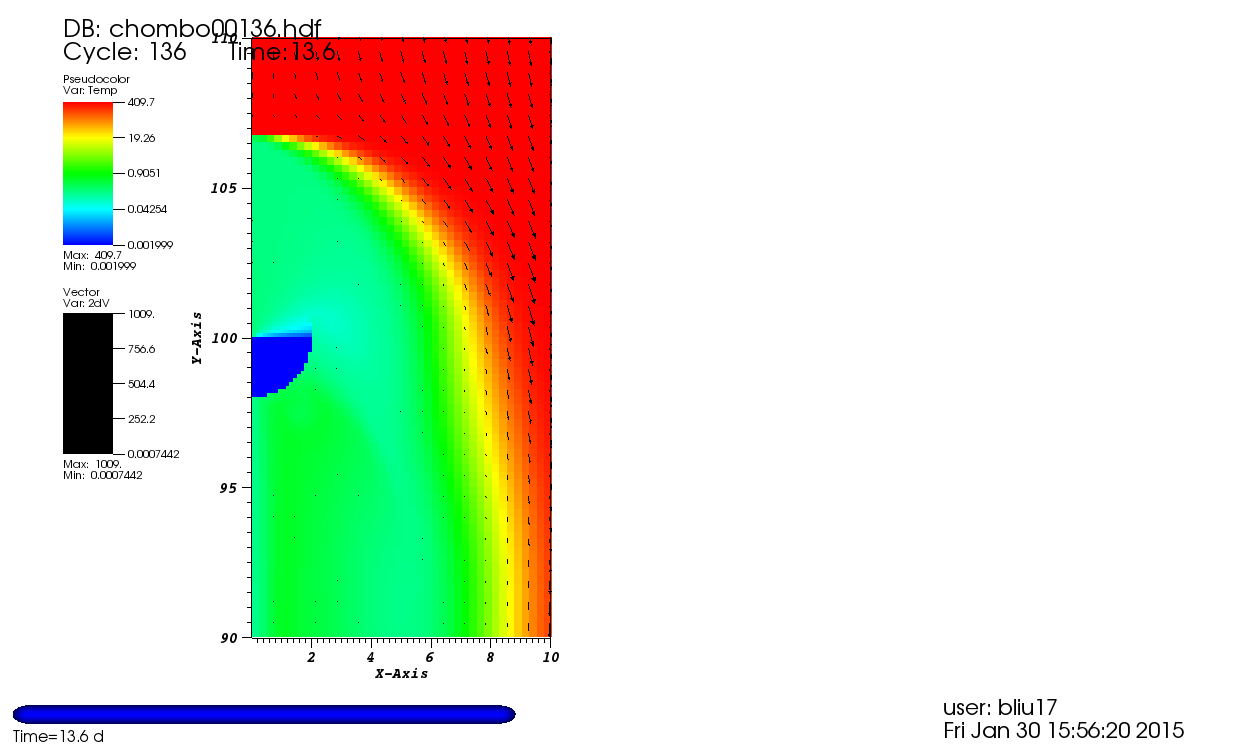

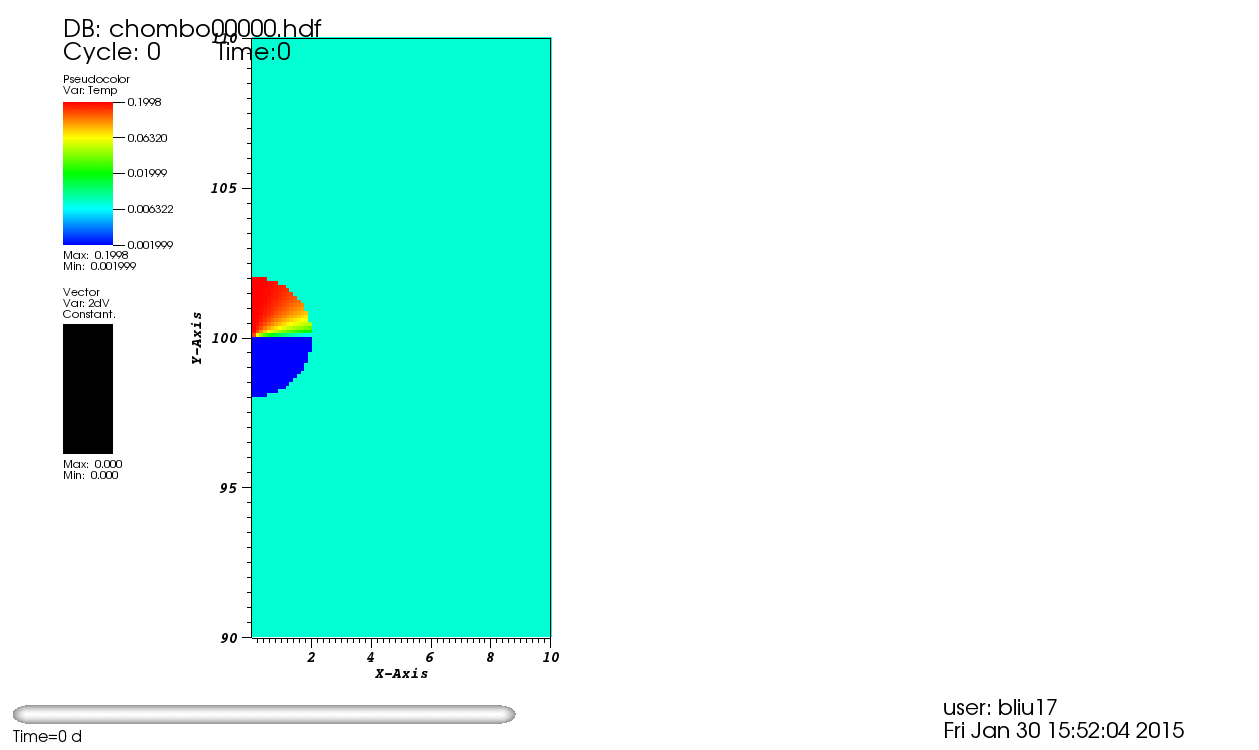

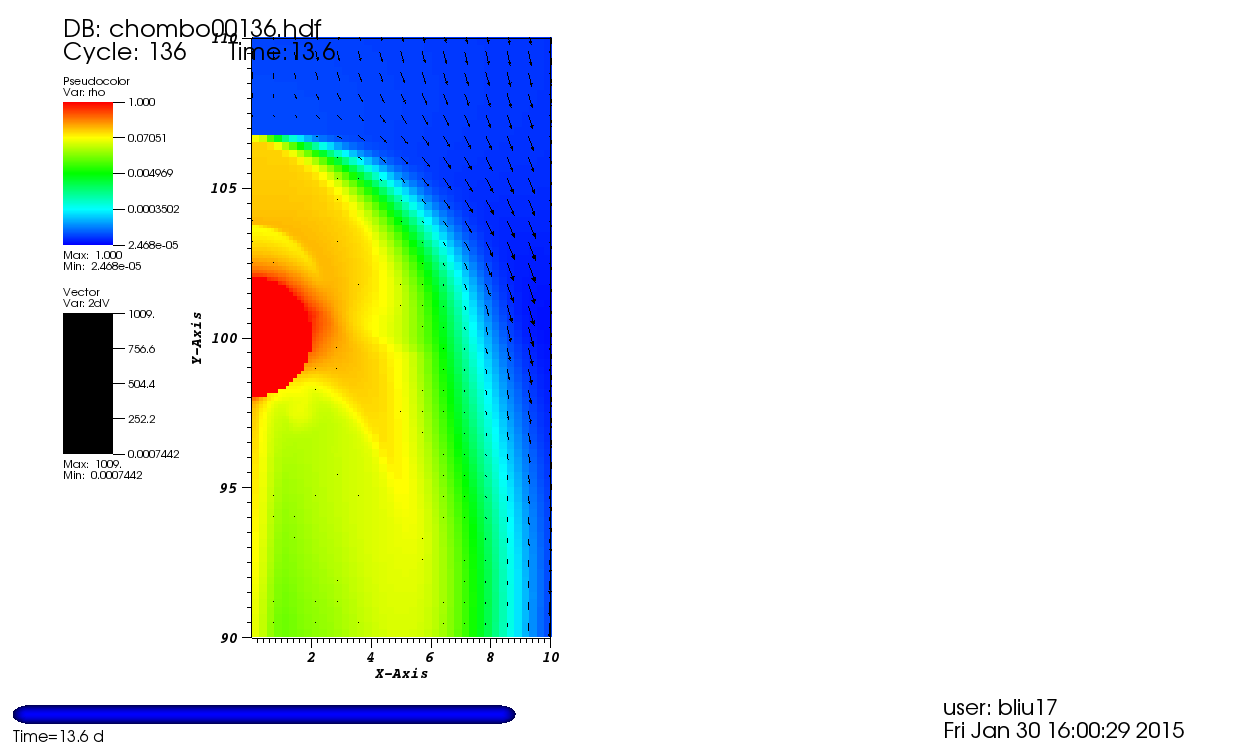

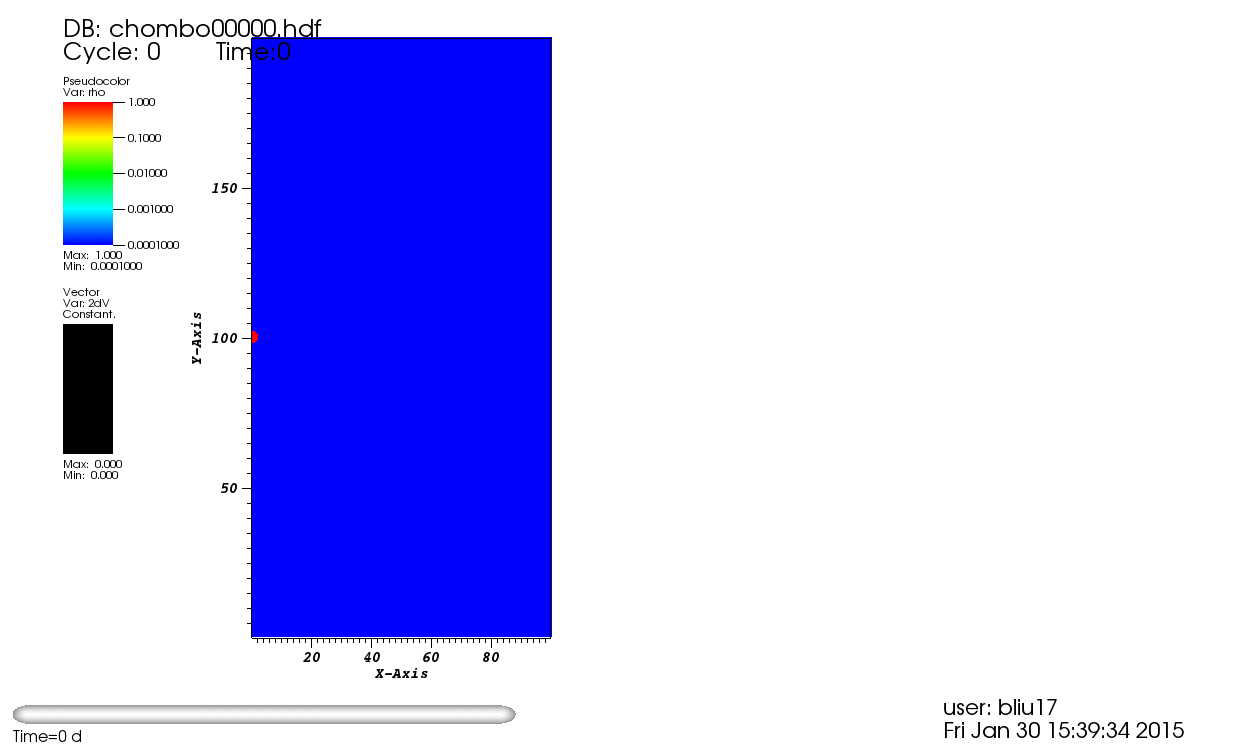

v_{*}=1.638 km/s	;	density; temperature;zoomed density;zoomed temperature

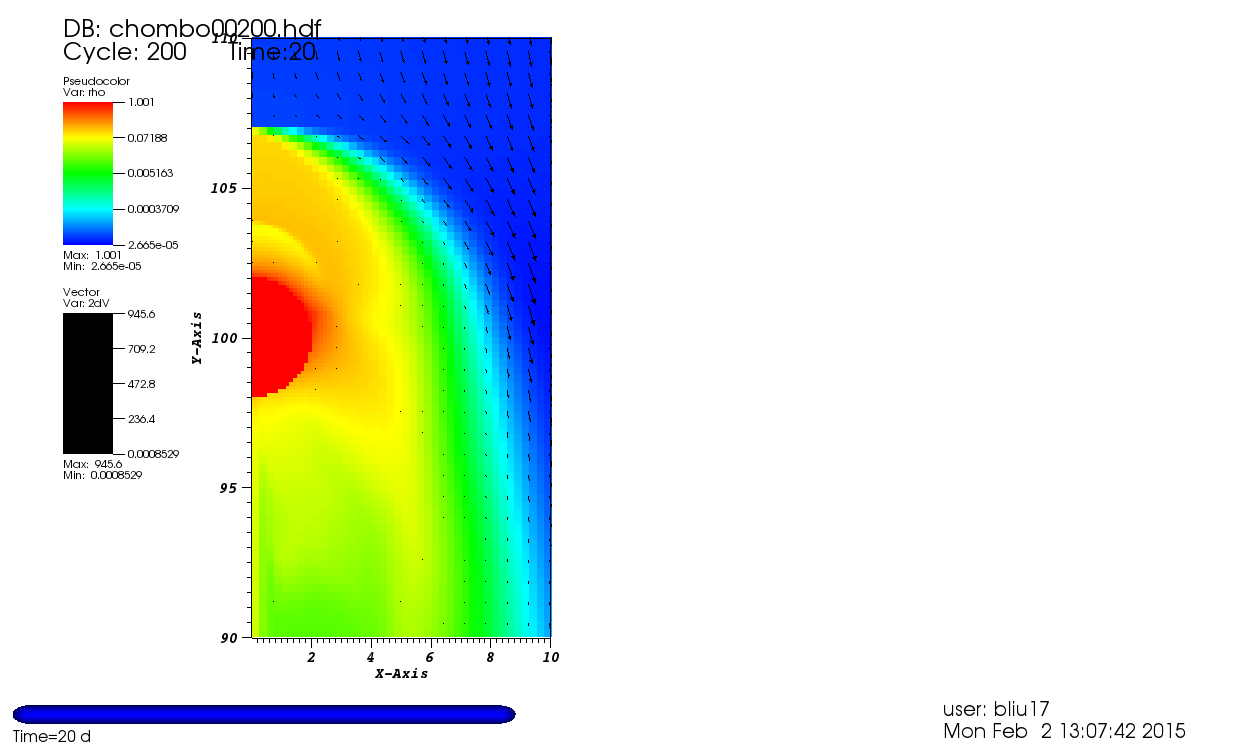

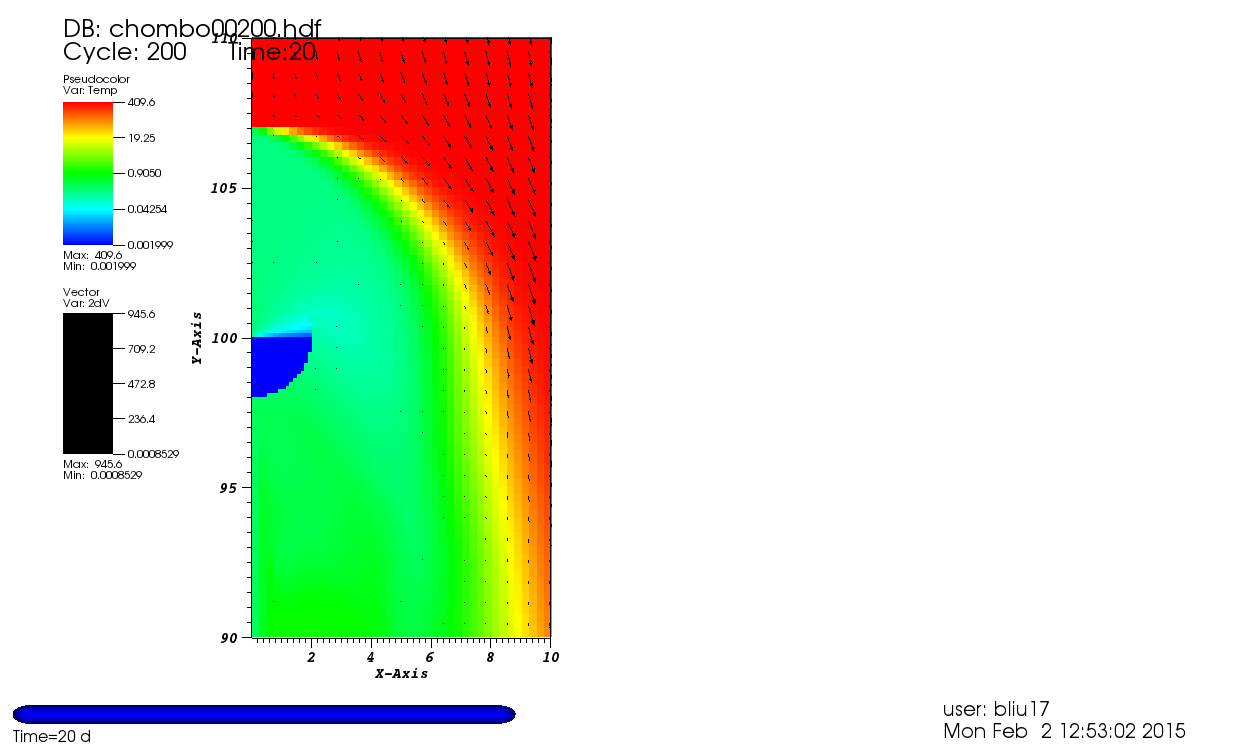

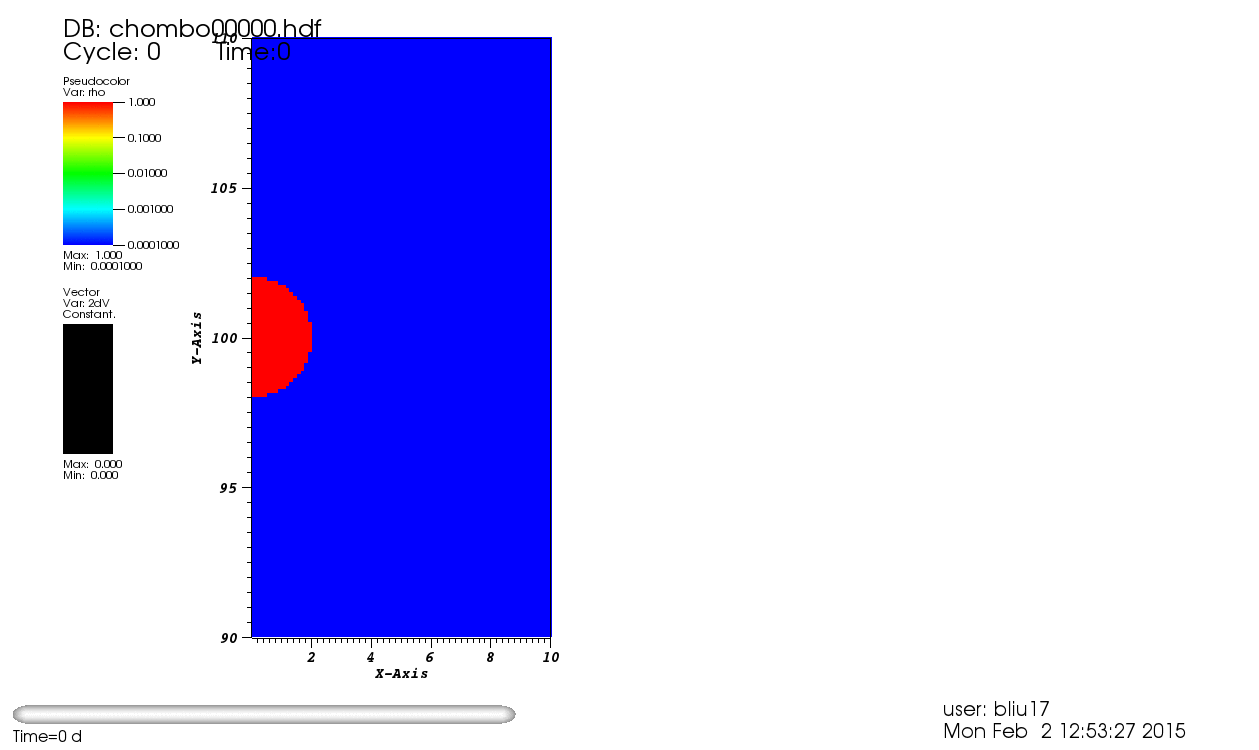

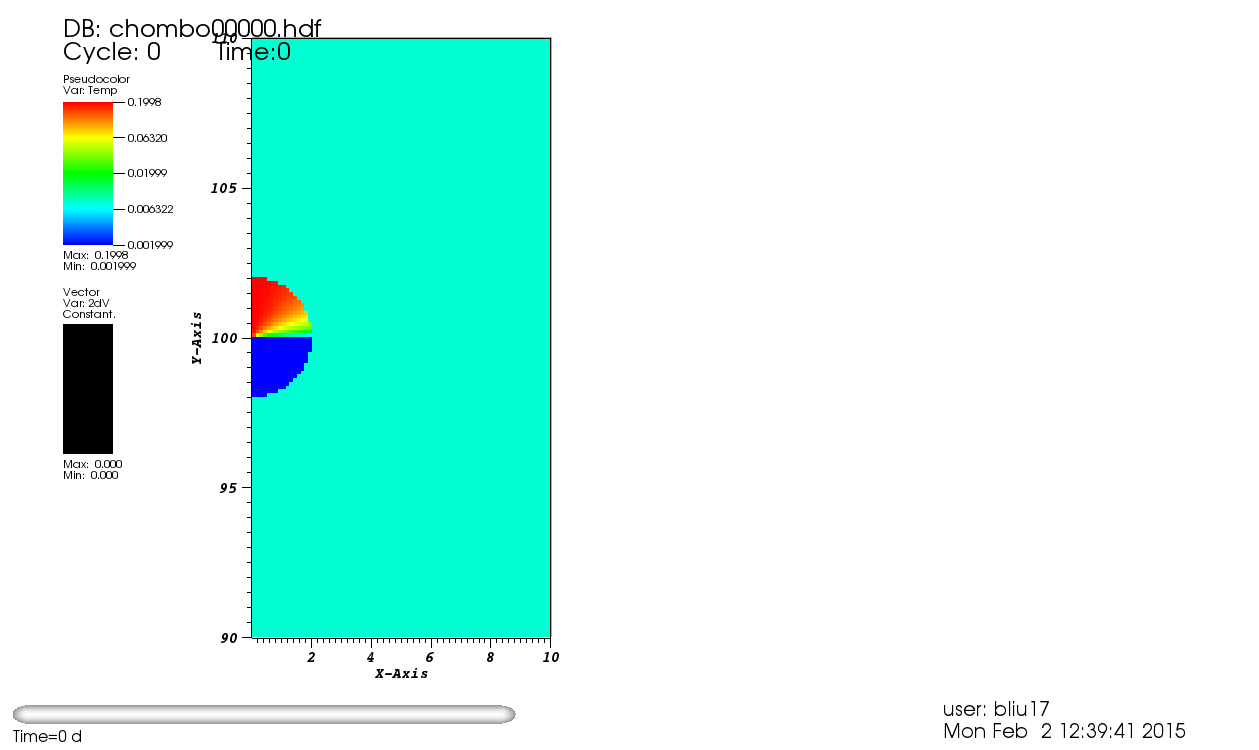

v_{*}=16.38 km/s	;	density; temperature

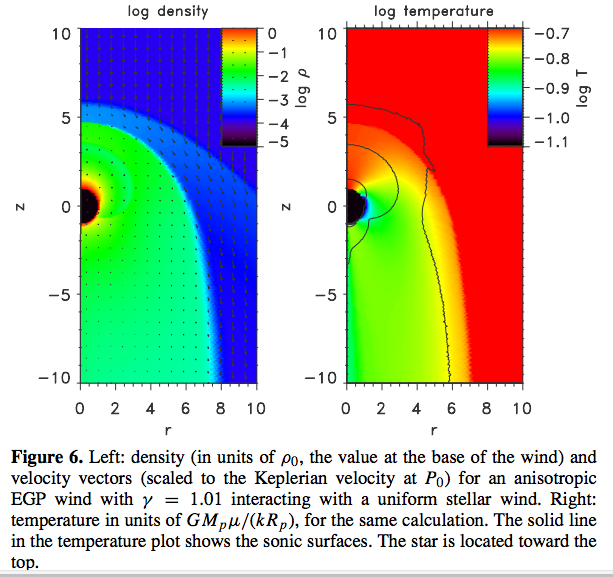

Stone & Proga

Interface growth rate for Ablative RT Regenerated 50 frames txt files for Rui as 200 & 100 frames takes too long to read in…

New user Helped Karan set up on local machine and worked him through using the code.
