Update 7/13
Exo3
Posters. Mine is supposed to be MHD, though it can still be edited. I think we may have gotten enough to make an interesting poster, though, especially with the last frame or two of the most recent run. Current plan is to discuss Eric's theory about the field guiding the wind in a more LOS direction in the context of original parameter space run and new results.
MHD tests
Truly uniform, constant magnetic fields. Initial conditions are the same in each pair of strong/weak field runs, barring the magnetic field strength. All simulations are using outflow-only boundary conditions.
Haven't run the simulations including a stellar wind yet, a little more difficult to double check the implementation of those.
+----------------------+------------+--------------+--------------------------------------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+ | | | | Strong Field (4.5x10^1^ G) | Weak Field (4.5x10^-4^ G) | +======================+============+==============+============================================+================================================================================================================================================================================+ | | | No wind | Immediate pressure protections. No frames. | Runs well. Slight acceleration, moving at max of ~5 km/s at 21 frames. Possibly from boundary condition? | | | No gravity +--------------+--------------------------------------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+ | | | Stellar wind | | | | Non-corotating frame +------------+--------------+--------------------------------------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+ | | | No wind | Immediate pressure protections. No frames. | Runs well. Accelerates toward star, bending field lines. 20 frames. | | | Gravity +--------------+--------------------------------------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+ | | | Stellar wind | | | +----------------------+------------+--------------+--------------------------------------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+ | | | No wind | Immediate pressure protections. No frames. | Runs well. Accelerates as expected, fixed at left & top because of boundary condition. 20 frames. | | | No gravity +--------------+--------------------------------------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+ | | | Stellar wind | | | | Corotating frame +------------+--------------+--------------------------------------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+ | | | No wind | Immediate pressure protections. No frames. | Runs well. Accelerates outward (I think as expected? Orbital velocity of planet is higher than Keplerian velocity of ambient). 4 frames (for some reason only ran on 4 cores). | | | Gravity +--------------+--------------------------------------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+ | | | Stellar wind | | | +----------------------+------------+--------------+--------------------------------------------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
Images of runs, numbered in order of appearance in table above:

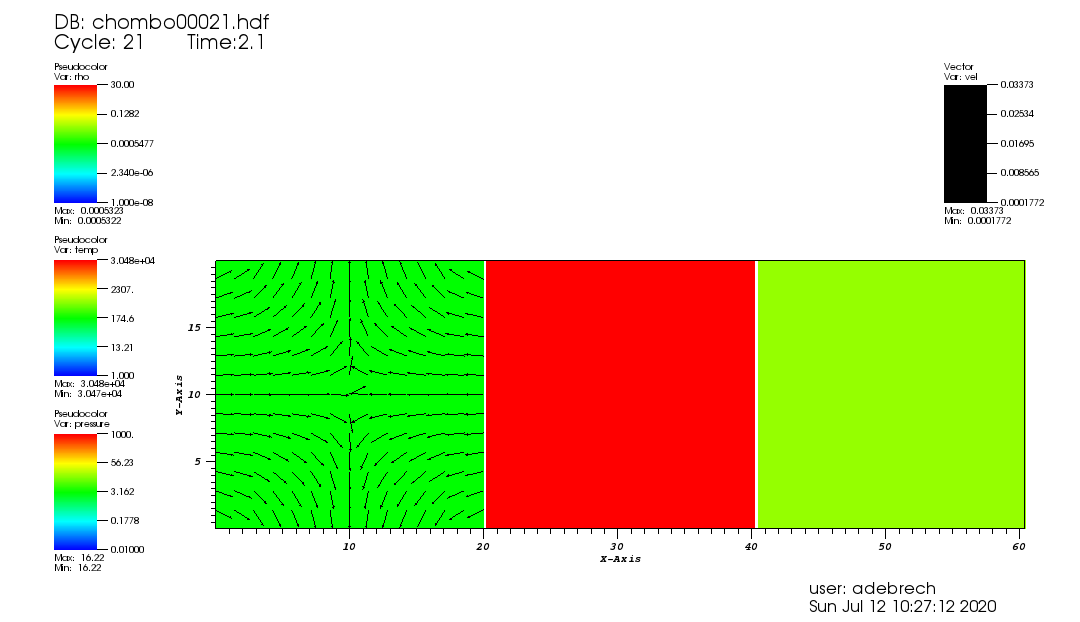

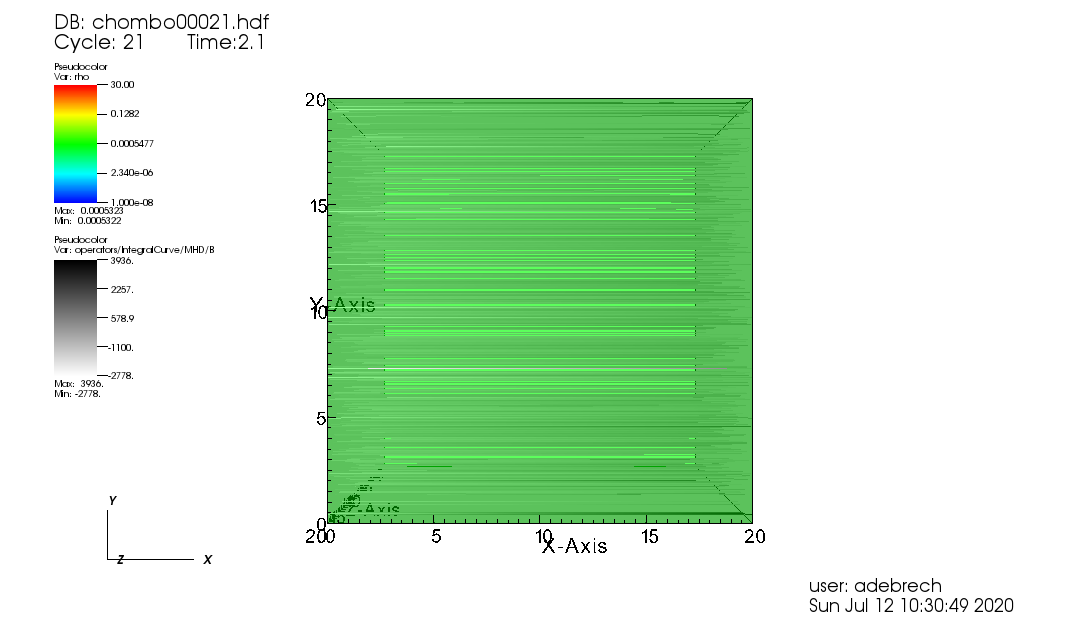

Run 2

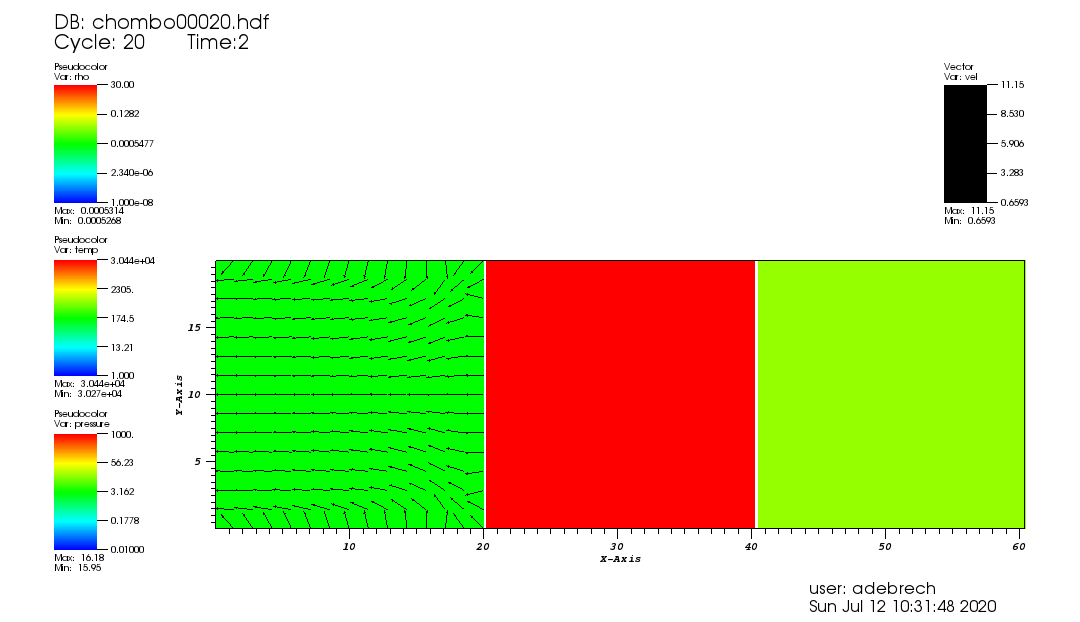

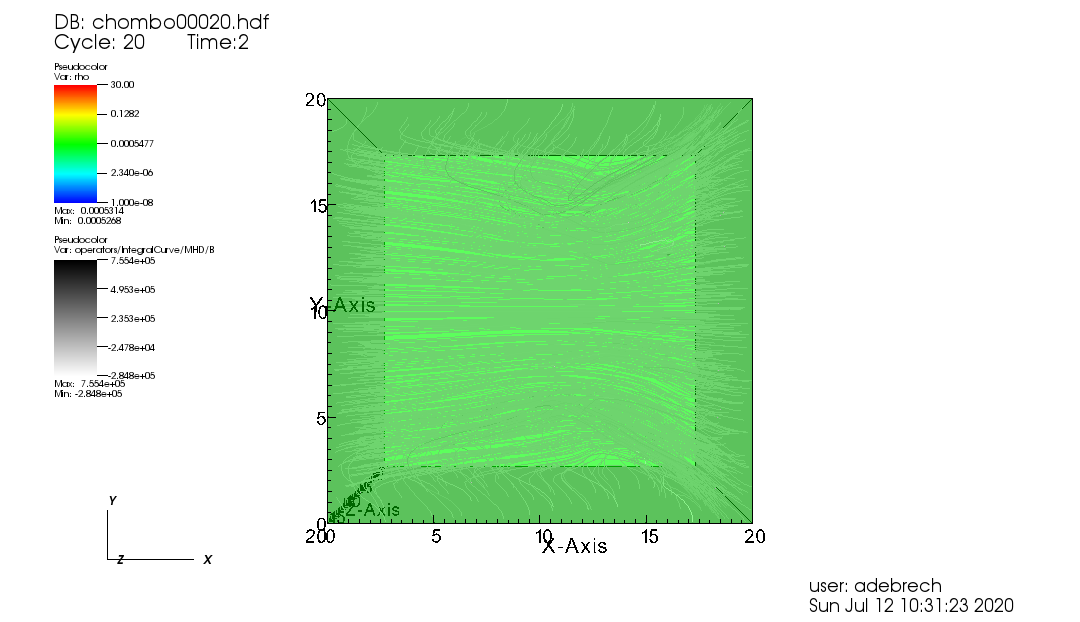

Run 6

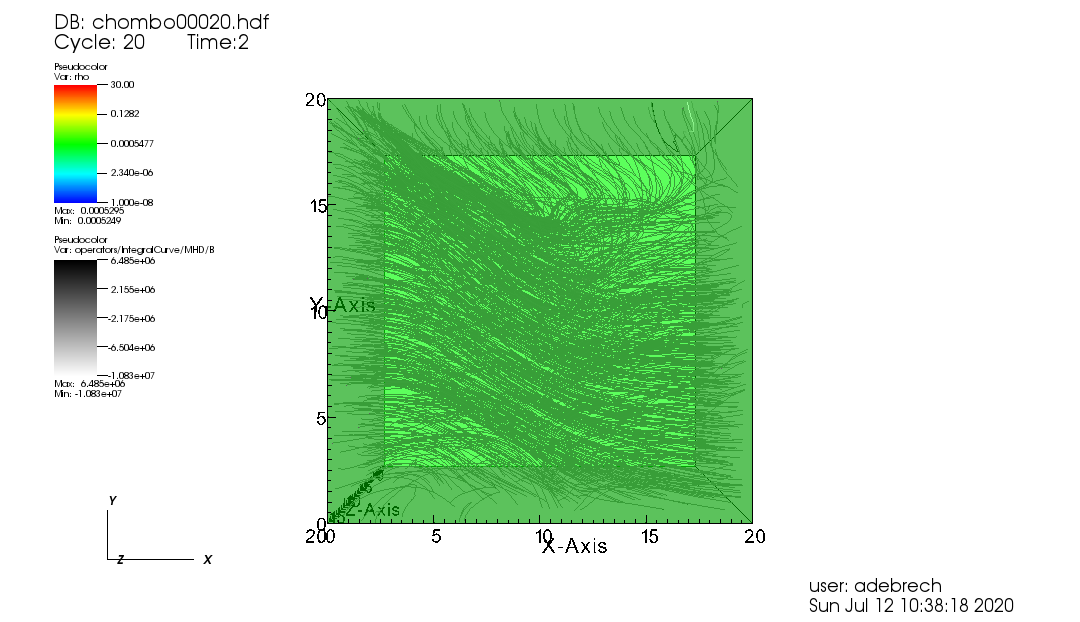

Run 10

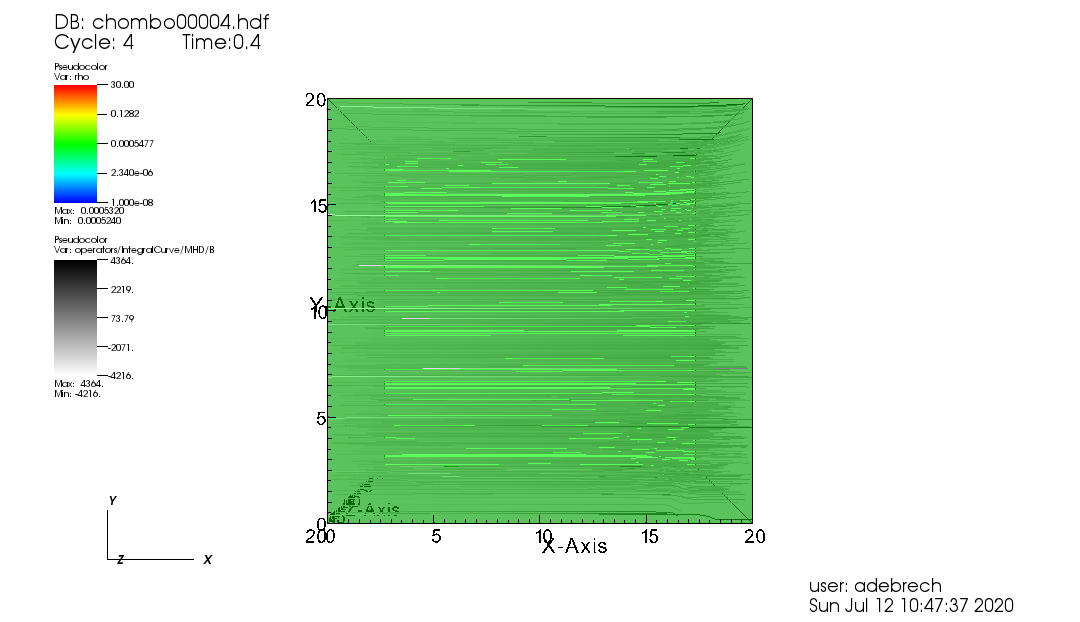

Run 14
Charge Exchange
Solar-type wind crashed with MPI issues before completing a single frame. I've halved the number of cores to reduce the messaging, which should fix that.
Completed 3 (of 5 planned) frames of strong wind with collisional ionization:
